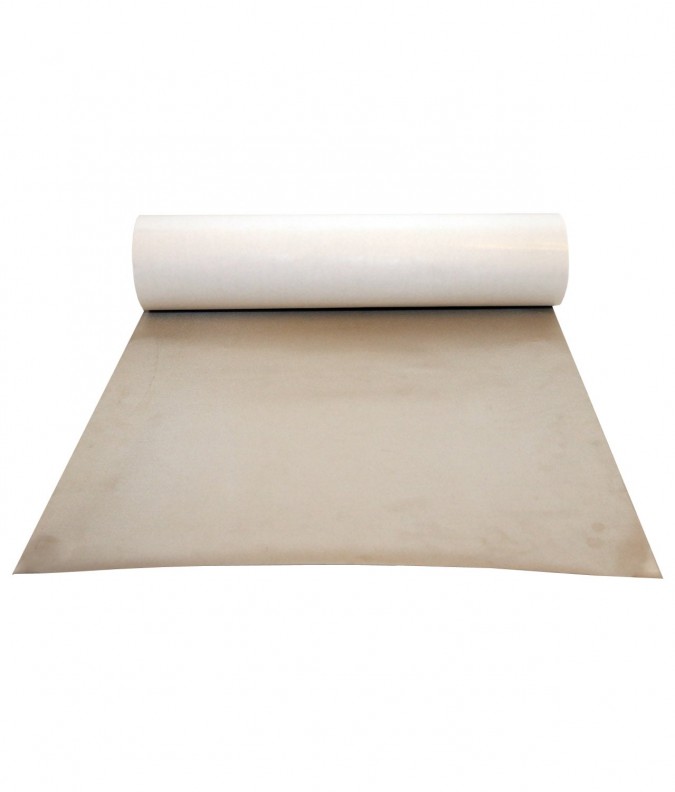

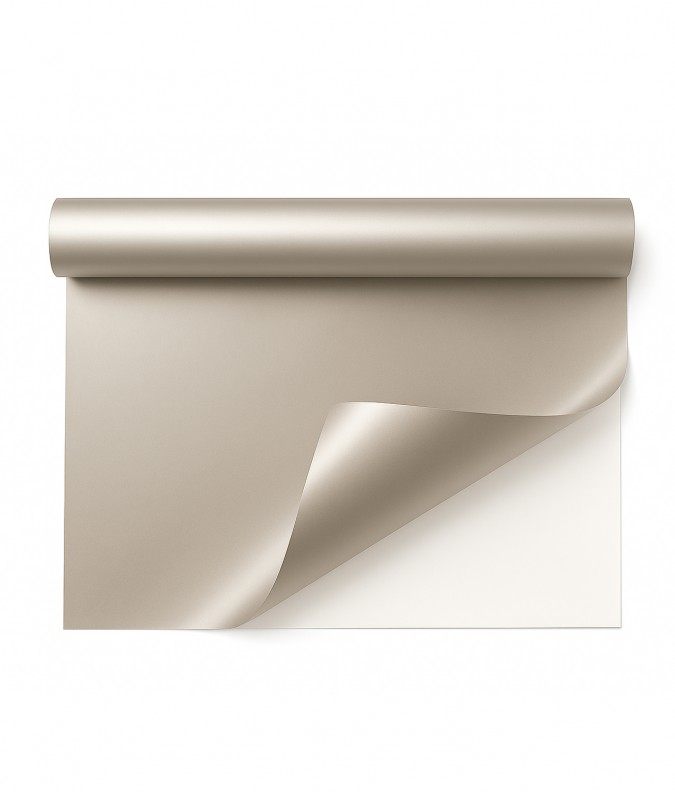

EMF Shielding Material LBK100A - Self Adhesive 20m Roll (53cm wide)
LEB-38454
Available
£ 382.80
Ideal 5G protection and home shielding.
Also perfect for RFID shielding and cyber-security applications.
Self-adhesive version of EMF protective material LBK100.
Provides exceptionally high shielding against all forms of EMF radiation.
Effectively blocks 5G, 4G, 3G, GSM, Wi-Fi, RFID, Bluetooth, TETRA, DECT, and other EMR.
Strong and durable material.
Length: 20 meters (Roll).
Width: 53cm.
EMF Shielding Performance Results (1 MHz – 40 GHz)
Measured from 1 MHz to 5.8 GHz:
| C-Net, TETRA, 450 MHz | 80 dB |
|---|---|
| D-Net, GSM900, 900 MHz, | 83 dB |
| E-Net, GSM1800, 1800 MHz | 85 dB |
| Blue-Tooth, WLAN 2450 MHz | 84 dB |
| 5G (Sub 6GHz-Band) 3.4 – 3.8GHz | 85 dB |
| W-LAN new generation 5.8 GHz | 75 dB |
EMF Shielding Levels Graph
Measured from 7.5 GHz to 18 GHz:
| Frequency | dB |
|---|---|
| 7.5 GHz | >42 |
| 10.0 GHz | >42 |
| 12.5 GHz | >42 |
| 15.0 GHz | >42 |
| 18.0 GHz | >42 |
Measured from 20 GHz to 40 GHz:
| Frequency | dB |
|---|---|
| 25 GHz | >52 |
| 30 GHz | >52 |
| 35 GHz | >52 |
| 40 GHz | >52 |
Grounding required with several applications (Use our Grounding Tape)
*Please note these materials are not suitable for personal wear.
